A few years back, a warehouse foundation in Paget started cracking six months after completion. The contractor had assumed the clay was stable, but the soil actually swelled and shrank with moisture changes. That job taught us a hard lesson: you need to know the plasticity of Mackay's subgrade before pouring concrete. Atterberg limits testing gives us the liquid limit, plastic limit, and plasticity index — three numbers that tell you exactly how a clay will behave under load and changing weather. For any project in Mackay, from a residential slab in North Mackay to a retaining wall along the Pioneer River, we run these tests as part of our standard geotechnical suite. Combine them with a clasificacion de suelos to get the full picture of what you are dealing with.
The plasticity index is the single most reliable predictor of clay behaviour in Mackay's coastal and alluvial soils.
Methodology and scope
Mackay has two completely different soil stories depending on where you build. In the older alluvial flats near the city centre, you find high-plasticity clays with plasticity indices above 35 — these shrink and expand a lot. Up on the Eungella Range foothills, you get residual soils from weathered volcanic rock, which behave more like silty sands with low plasticity. Our lab runs Atterberg limits on every sample we take, and the contrast between these zones is dramatic. To refine your foundation design, we also recommend a ensayo proctor to determine the compaction characteristics of the fill material you will place. The process itself is straightforward: we determine the liquid limit using the Casagrande cup method, then roll out threads for the plastic limit, and calculate the plasticity index from the difference. Results come back in about 48 hours, so you can adjust your earthworks plan immediately. For sites near the coastline, where saltwater intrusion can affect clay behaviour, we add a suelos expansivos assessment to flag potential heave issues early.

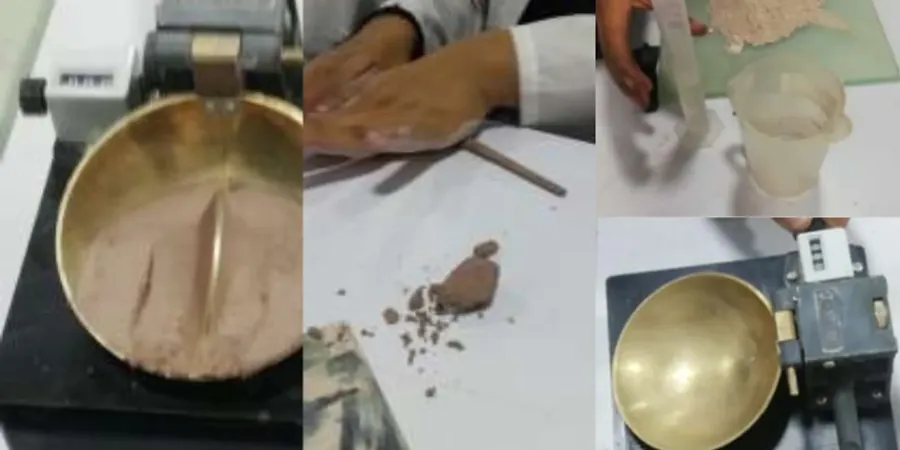

Technical reference image — Mackay
Local considerations
Mackay sits on the coastal plain where the water table can be less than 2 metres deep after heavy rain, and the region sees an average of 1,600 mm of annual rainfall. That is a lot of water cycling through clay soils. When a clay has a plasticity index above 30, it can swell up to 10 % of its volume when wet and crack deeply when dry. Build a slab on that without knowing the Atterberg limits, and you risk differential movement, cracked walls, and doors that jam. We have seen it happen on a housing development in Glenella where the builder skipped the plasticity test. The repair bill was bigger than the original earthworks budget. Testing avoids that cost entirely.
Using the Casagrande cup apparatus, we perform the multi-point method to find the moisture content at 25 blows. This gives you the liquid limit with an accuracy of ± 1 % for reliable classification.
02
Plastic Limit and Plasticity Index
We roll soil threads down to 3.2 mm diameter to determine the plastic limit, then calculate the plasticity index. This number tells you exactly how reactive your clay is under moisture changes.
03
Linear Shrinkage Test
We measure the shrinkage of a soil bar as it dries, giving you the linear shrinkage percentage. Essential for slab design on Mackay's expansive clays, especially in areas like Andergrove and Beaconsfield.
Applicable standards
AS 1289.3.1.1-17e1 (Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils), AS 1726-2017 (Geotechnical Site Investigations, Section 5 – Laboratory Testing), AS 1289.3.2.1 (Soil Classification Tests – Determination of the Plastic Limit of a Soil)
Frequently asked questions
How long does an Atterberg limits test take in Mackay?
We typically return results within 48 hours from sample receipt. If we receive the sample by Wednesday morning, you will have the liquid limit, plastic limit, and plasticity index on Friday. Rush turnaround of 24 hours is available for urgent projects.
What is the difference between liquid limit and plastic limit in practical terms?
The liquid limit is the moisture content where soil starts to flow like a thick liquid, while the plastic limit is where it crumbles when rolled into a thread. The gap between them — the plasticity index — tells you how much the soil will swell and shrink. A high PI means you need deeper foundations or better drainage to avoid movement.
How much does Atterberg limits testing cost in Mackay?
The price for a full set of Atterberg limits (liquid limit, plastic limit, and plasticity index) ranges between AU$100 and AU$180 per sample. The exact figure depends on the number of samples and whether you need linear shrinkage added. We provide a fixed quote before any testing begins.
