The humid subtropical climate of Mackay, combined with its position between the Pioneer River and the Coral Sea, creates a challenging geotechnical environment where near-surface soils range from soft estuarine clays to loose sandy deposits. A CPT (Cone Penetration Test) gives you a continuous, real-time profile of these variable strata, allowing engineers to identify weak layers, assess liquefaction potential, and design foundations with confidence. Because the Pioneer Valley is prone to seasonal flooding, understanding the behavior of saturated sands and compressible clays through a CPT is critical before any slab-on-grade or piled foundation is specified. This method is also the preferred approach for projects along the Bruce Highway corridor, where deep soft deposits can affect embankment stability. For shallow investigations, a CPT can be paired with a calicatas exploratorias to validate soil classification at specific depths.
A single CPT sounding provides continuous soil behavior type classification every 20 mm – far more resolution than standard SPT sampling intervals.
Methodology and scope
Mackay's underlying geology consists of Quaternary alluvium overlying Permian volcanics and sedimentary rocks, with groundwater levels often encountered between 1.5 m and 4 m below the surface. The CPT cone measures tip resistance (qc), sleeve friction (fs), and pore pressure (u2) at 20 mm intervals, producing a high-resolution log that distinguishes clean sands from silty clays without the need for sampling.
Tip resistance (qc) — correlates directly with bearing capacity for shallow foundations and pile shaft resistance.
Sleeve friction (fs) — used to calculate friction ratio and identify soil behavior type.
Pore pressure (u2) — critical for assessing drainage conditions and excess pore pressure during pile driving.
These parameters feed directly into AS 1726 and AS 4678 design checks. When soft estuarine deposits are detected near the Mackay Marina or Bakers Creek, the CPT data can be combined with a consolidacion test to predict long-term settlement rates. For projects on the northern beaches, where sand compaction is variable, the CPT is also used to trigger the need for vibrocompactacion treatment.

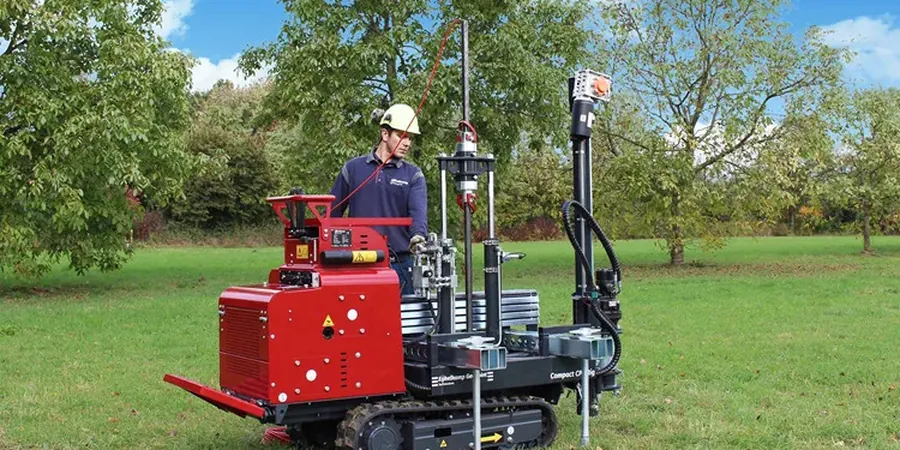

Technical reference image — Mackay
Local considerations
Many local contractors in Mackay rely solely on SPT N-values from mud rotary boreholes, which can underestimate deformation in the soft estuarine clays found near the city center. A CPT captures the full stress-strain response in thin layers that SPT would miss entirely. Without this high-resolution profile, you risk designing foundations on an averaged N-value that masks a weak seam at 3 m depth. For coastal lots in Blacks Beach or Eimeo, where loose sands extend below the water table, the CPT is the only in-situ test that directly measures liquefaction resistance using the Robertson & Wride (1998) method. Ignoring this can lead to differential settlement during a seismic event or even lateral spreading.
Continuous profiling to 20–25 m depth with 10 cm² cone. Reports include qc, fs, u2, friction ratio, and soil behavior type classification per Robertson (1990). Ideal for residential subdivisions and commercial buildings in Mackay.
02
CPT with Pore Pressure Dissipation
Dissipation tests at key depths to estimate in-situ hydraulic conductivity and consolidation coefficient. Essential for projects near the Pioneer River or in areas with thick clay caps.
03
Seismic CPT (SCPT)
Adds shear wave velocity measurement using a geophone embedded in the cone. Used for site class determination per AS 1170.4 and liquefaction triggering analysis in Mackay's coastal zones.
Applicable standards
AS 1726-2017 Geotechnical Site Investigations, AS 4678-2002 Earth Retaining Structures, AS/NZS 1170.0-2002 Structural Design Actions – General Principles, International Society for Soil Mechanics and Geotechnical Engineering (ISSMGE) CPT Interpretation Guidelines
Frequently asked questions
How deep can a CPT go in Mackay soils?
In the typical alluvial profiles of Mackay, we reach 20–25 m in soft clays and silts, and 12–15 m in dense sands or gravels. The maximum depth is limited by the cone thrust capacity (100 kN) and the refusal criterion of qc > 35 MPa.
What is the difference between CPT and SPT for Mackay projects?
The CPT provides a continuous log with 20 mm resolution, direct measurement of stiffness (qc), and pore pressure response. SPT gives discrete blow counts at 1.5 m intervals and requires sample recovery. For thin sand layers in Mackay's alluvium, CPT is far superior for detecting weak zones.
Can CPT data be used for liquefaction assessment in Mackay?
Yes. The CPT-based method by Robertson & Wride (1998) is the standard approach for liquefaction triggering evaluation. In Mackay, where loose saturated sands exist beneath the water table in areas like Bucasia and Eimeo, the CPT directly measures qc and fs needed for the cyclic resistance ratio calculation.
How quickly can you mobilize a CPT rig in Mackay?
We typically have a rig available within 3–5 business days for Mackay projects. The 100 kN truck-mounted unit operates on standard road access and requires a level area of about 4 m × 4 m. For soft ground, we use a tracked carrier to avoid bogging.
What does a CPT cost for a typical residential site in Mackay?
For a standard CPT to 15 m depth on a residential lot in Mackay, the cost typically ranges between AU$270 and AU$440 per sounding, depending on access, depth, and number of dissipation tests. Volume discounts apply for multi-sounding projects on subdivisions.
