Mackay grew fast after the sugar boom in the 1880s. The city spread across alluvial plains and coastal lowlands. Early builders used timber piles driven into soft clays. They learned quickly that the ground here changes within meters. Today we analyze pile skin friction vs. end bearing for every deep foundation in Mackay. The soil profile often includes soft estuarine clays over stiff Pleistocene deposits. That contrast makes the friction-to-end-bearing ratio critical. Before designing, we run ensayo CPT to get continuous profiles of cone resistance. We also check consolidacion data to predict settlement under sustained loads. Without that, you risk overdesigning the pile toe.
In Mackay's alluvial soils, the friction-to-end-bearing ratio can shift from 60:40 to 20:80 within a single borehole. That variability demands site-specific testing.
Methodology and scope
The humidity and rainfall in Mackay push groundwater tables high. Many sites have a water table within 1.5 m of the surface. That saturates the upper clay layers and reduces effective stress. Pile skin friction in those zones drops sharply. We measure soil sensitivity using veleta-campo tests to find remoulded strength. The coastal sands below the clays provide good end bearing. But they often contain shell fragments that alter friction angles. We combine direct shear tests with pile load simulations. Our laboratory follows ISO 17025 procedures for every index test. The final report includes shaft resistance and base resistance profiles. That separates the two load-transfer mechanisms clearly.

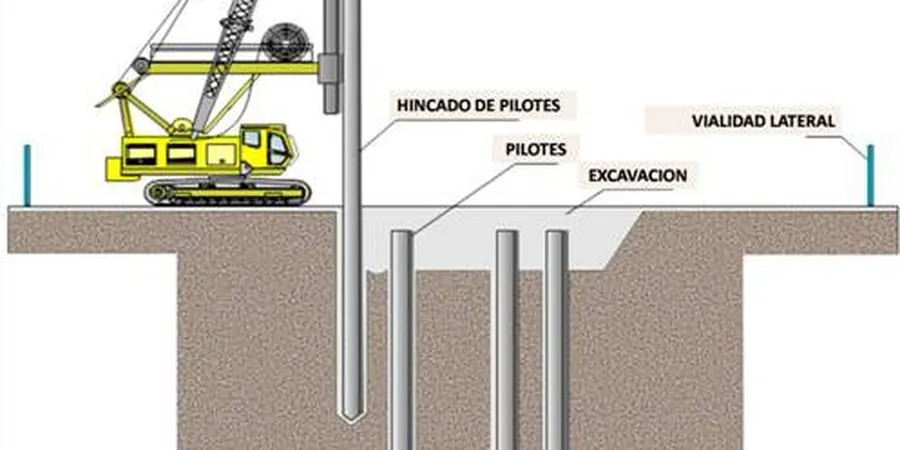

Technical reference image — Mackay
Local considerations
AS 1726:2017 governs site investigation in Queensland. It requires classification of soil behaviour for pile design. In Mackay, the main risk is underestimating negative skin friction. Soft clays settle under fill loads and drag the pile shaft down. That adds load to the pile toe. We use the alpha and beta methods from FHWA manuals to compute shaft resistance. A capacidad-de-cargaanalysis checks the ultimate limit state. We also apply partial factors from AS 2159 for pile design. Ignoring the friction-to-end-bearing separation here leads to differential settlement between piles. That cracks pile caps and superstructure.
For cohesive soils, we apply the alpha method from API RP 2A. Shaft resistance = alpha × Su. We calibrate alpha using local CPT data from Mackay's clay layers.
02
Beta method shaft resistance
For granular soils, we use the beta method. Beta = K × tan(delta). We derive K from lateral earth pressure and delta from interface friction tests on Mackay sands.
03
End bearing capacity – bearing capacity theory
We compute base resistance using Terzaghi's bearing capacity factors. Adjustments for pile diameter and embedment depth follow AS 2159. Results are validated against static load tests.
Applicable standards
AS 1726:2017 – Geotechnical site investigations, AS 2159:2009 – Piling design and installation, FHWA-NHI-05-042 – Driven pile design manual
Frequently asked questions
How much does a pile skin friction vs. end bearing analysis cost in Mackay?
The analysis typically ranges between AU$1,590 and AU$4,720 depending on the number of boreholes and laboratory tests. The final cost depends on site access and required load test verification.
What soil conditions in Mackay most affect the friction-to-bearing ratio?
Soft estuarine clays from the Pioneer River floodplain reduce shaft friction significantly. Stiff sands at 10–15 m depth provide high end bearing. The transition zone between them creates the largest ratio variability.
How do you separate skin friction from end bearing in a pile load test?
We use instrumented piles with strain gauges at multiple depths. The gauges measure load transfer along the shaft. Subtraction of shaft load from total load gives the end bearing component. This follows AS 1289 procedures.
Which AS 1726 soil classification is most common for Mackay's pile design?
CH (high plasticity clay) and CL (low plasticity clay) dominate the upper profile. Underneath, SP (poorly graded sand) and SM (silty sand) are typical. The classification drives the choice of alpha or beta method.
Can you predict negative skin friction in Mackay's soft clays?
Yes. We model downdrag using the neutral plane method. It requires consolidation data from oedometer tests and expected fill loads. Negative friction can add 30–50% to the design axial load in deep clay layers.
