Mackay sits on a deep alluvial plain where the Pioneer River has deposited layers of sand, silt, and clay over thousands of years. The water table here sits less than 2 metres below ground across most of the city, which creates a real challenge when you need to stabilise loose sands or seal off permeable zones before excavation. Grouting design in this setting has to account for both the high moisture content and the variability of the alluvial deposits — you can't just pump a standard mix and hope it works. We start with a detailed site investigation, running permeability field tests to map the flow paths and borehole logging to understand the layer sequence, so every injection plan is built around real ground conditions.
In Mackay's alluvial sands, a poorly designed grout curtain can wash out before it gains strength — proper design is non-negotiable.
Methodology and scope
Mackay grew fast during the sugar boom of the early 1900s, with mills and wharves built straight onto the floodplain without much thought for what lay underneath. That history means many older structures now sit on ground that was never properly treated, and new developments often punch through old fill layers into the original alluvium. For grouting design, the key parameters are the sand's relative density and the silt content — both control how far a cement or chemical grout can travel before it sets. We also look at the groundwater chemistry because aggressive salts in Mackay's coastal aquifer can degrade some grout types over time. The local council's flood mapping and our own piezometer readings give us the seasonal water level data we need to design injections that stay effective through wet and dry cycles.

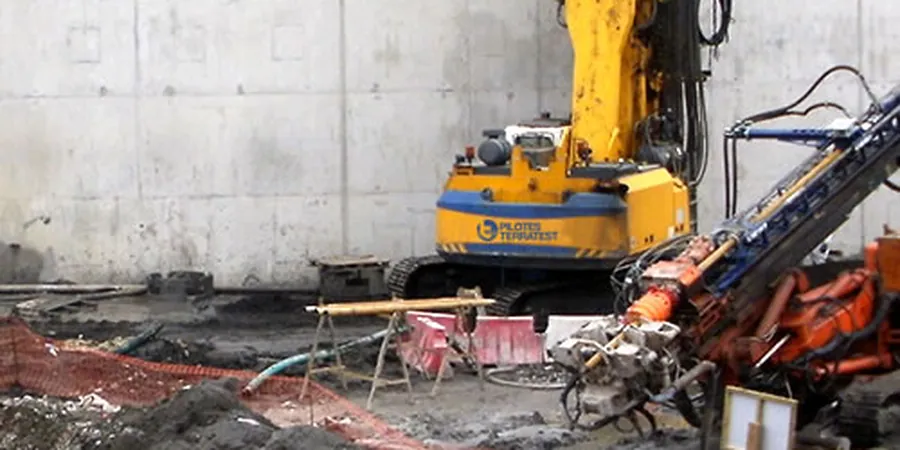

Technical reference image — Mackay
Local considerations
I walked a site in the Paget industrial estate a few years back where the contractor had already poured a 1.2-metre blinding slab before the grouting was done. The groundwater came up through the construction joints within a week — the sand underneath was so loose it acted like a wick. We had to drill through the slab, install sleeve-port pipes, and do a full permeation grouting programme at double the original cost. That's the risk in Mackay: if you treat grouting as an afterthought, you end up paying for it twice. A proper grouting design upfront, matched to the site's actual permeability and grain size, eliminates that retrofitting nightmare.
Cementitious, chemical (silicate), or polyurethane
Injection pressure range
200 kPa to 800 kPa (dependent on overburden)
Viscosity at placement
30–60 seconds (Marsh funnel)
Water:cement ratio
0.6:1 to 1:1 by weight
Radius of influence
0.5 m to 1.5 m per injection point
Gel time (chemical grout)
10–45 minutes (adjustable)
Associated technical services
01
Permeation Grouting Design (Sands & Silts)
For Mackay's loose alluvial sands, we design low-pressure permeation grouting schemes that fill the pore space without fracturing the soil. The work includes sleeve-port layout, mix selection (cement or chemical), injection sequence, and pressure limits — all tied to the actual grain size distribution and groundwater conditions on your site.
02
Fissure & Void Filling Design (Old Fill & Karst)
Where Mackay's historical fills have left voids or where dissolution features exist in the underlying limestone lenses, we design high-mobility grout programmes to fill those openings. Our approach balances flow rate and gel time to avoid wastage while ensuring complete void occupancy, and we specify QA testing like core drilling and water-pressure tests to confirm the result.
Applicable standards
AS 1726 – Geotechnical Site Investigations, AS 4678 – Earth Retaining Structures (grout-related anchorage), AS/NZS 1170.2 – Structural design actions (groundwater and surcharge), AS 1289.6.7.3 – Standard Practice for Design and Installation of Groundwater Monitoring Wells
Frequently asked questions
How much does a grouting design report cost in Mackay?
For a typical residential-to-medium commercial site in Mackay, the design report runs between AU$1.880 and AU$6.740. The range depends on site size, number of injection zones, and whether we need additional field permeability tests. We give you a fixed price after the initial site walk-through.
What site data do you need to start a grouting design?
We need borehole logs with SPT N-values, groundwater levels, and particle size distribution of the target soils. If the site has existing contamination or aggressive groundwater chemistry, we also need a water sample analysis. For Mackay sites, we strongly recommend a full piezometer record across at least one wet season.
Can you design grouting for both temporary and permanent works?
Yes, and the approach differs. Temporary works — like excavation support or dewatering cut-offs — use faster-setting, lower-strength grouts that are easier to remove later. Permanent works, such as foundation consolidation or seepage barriers under a slab, need long-term durability and compatibility with the surrounding soil chemistry. We design each case against AS 4678 and AS/NZS 1170.
What happens if the grout doesn't set properly in Mackay's wet ground?
That's exactly why we run lab trials before field injection. Mackay's high water table can dilute or wash out a cement grout if the w:c ratio isn't right. We adjust the mix with accelerators or switch to a chemical grout where needed, and we always include a post-grouting verification — either a second permeability test or a core inspection — to confirm the design worked.
