Many construction teams in Mackay underestimate the impact of tidal groundwater on sheet pile wall design. The Pioneer River and coastal canals create variable hydrostatic pressures that shift with the tide. Ignoring this leads to wall failure during high water events. A proper sheet pile wall design must account for daily water level fluctuations and the abrasive nature of the Pioneer River sand deposits. We embed seepage analysis into every calculation to prevent piping and heave at the toe. Combining this with a stability analysis of the retained slope ensures the wall holds both the soil and the water pressure.
Tidal groundwater in Mackay creates daily load reversals that standard designs miss. Embedment depth must account for both active and passive pressures under saturated conditions.
Methodology and scope
Mackay sits on Quaternary alluvium overlying Tertiary basalt. The top 6 metres consist of loose to medium dense silty sands with intermittent clay lenses. Below that, the basalt layer provides a competent bearing stratum but creates a hard driving condition for sheet piles. The water table sits at 1.5 to 3 metres depth across most of the urban area. These conditions demand a sheet pile wall design that evaluates both cantilever and anchored options based on embedment depth and soil stiffness. We follow AS 4678-2002 for earth retaining structures and AS/NZS 1170.2 for wind and water loads. Each design includes a corrosion allowance for the saline environment.

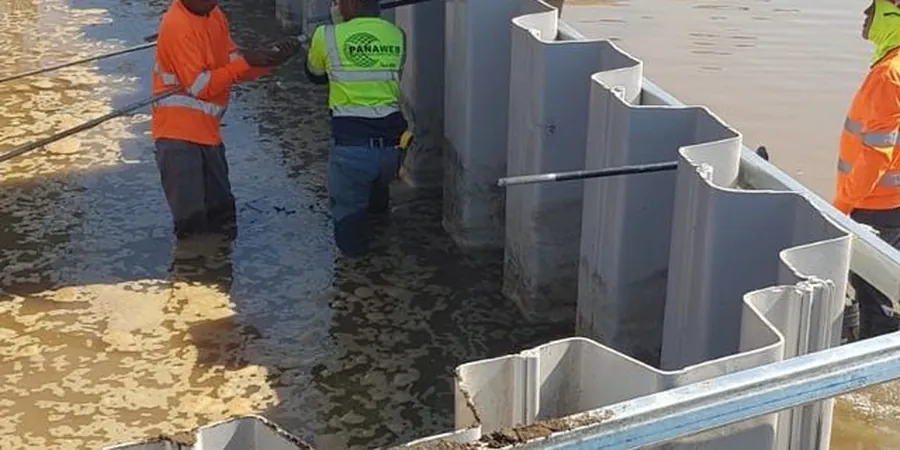

Technical reference image — Mackay
Local considerations
In Mackay, we often see sheet piles installed too shallow because the contractor assumes the basalt layer will hold the toe. The real risk is not the bearing capacity — it's the loss of passive resistance in the upper sand layer during a flood event. A 1-in-50-year flood can saturate the retained soil fully, reducing its shear strength by 40%. That shifts the failure plane behind the wall. Without a proper sheet pile wall design that models transient seepage, the wall rotates or slides. We always check the factor of safety against rotation under both drained and undrained conditions.
Boreholes to 15 metres depth with SPT and undisturbed sampling. We target the sand-basalt interface to determine driving resistance and toe fixity.
02
Seepage and hydrostatic analysis
Transient seepage modelling using the tidal cycle of the Pioneer River. We calculate pore pressure distributions for both high and low tide scenarios.
03
Structural design report (AS 4678)
Complete design package with bending moment diagrams, embedment depth calculations, anchor force demands, and corrosion protection recommendations.
Applicable standards
AS 4678-2002: Earth Retaining Structures, AS/NZS 1170.2: Wind and Water Loads, AS 1726-2017: Geotechnical Site Investigations
Frequently asked questions
What soil parameters are needed for sheet pile wall design in Mackay?
You need the friction angle and unit weight of the sand layer, undrained shear strength of any clay lenses, and the water table elevation at both high and low tide. We also require the SPT N-value at the basalt interface to estimate driving resistance.
How much does sheet pile wall design cost in Mackay?
A complete design package including geotechnical investigation, seepage analysis, and structural calculations ranges from AU$2,600 to AU$8,010 depending on wall height, site access, and the number of anchor levels. Contact us for a site-specific quote.
Do I need a corrosion allowance for sheet piles near the Mackay marina?
Yes. The saline groundwater and tidal splash zone create aggressive corrosion conditions. We specify a minimum 1.5 mm corrosion allowance on each exposed face, which typically means selecting a heavier pile section than the structural design alone requires.
