The difference between Mackay's coastal suburbs like North Mackay and the inland areas around Mount Pleasant is stark: fine-grained alluvial clays dominate near the Pioneer River, while sandy colluvium sits on higher ground. For soft clay sites, preloading design without surcharge offers a controlled way to induce settlement before construction, relying solely on the weight of the fill itself. This method avoids the complexity of adding extra surcharge loads, making it ideal for projects where space is constrained or where temporary loads are impractical. Before specifying the fill height, geotechnical engineers must assess consolidation characteristics through oedometer tests and field monitoring. The approach demands accurate estimates of primary consolidation time and magnitude, especially when targeting residual settlements under 25 mm. Understanding the local soil profile is key, and combining preloading with consolidation testing helps verify the design assumptions against actual field behavior.

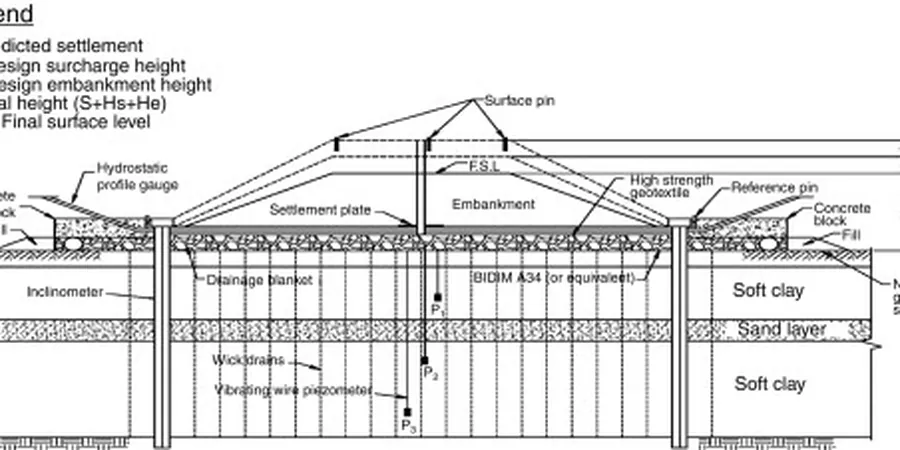

Preloading without surcharge relies on precise consolidation monitoring: settlement plates and piezometers track real-time progress before permanent construction begins.
Methodology and scope
In Mackay, many engineers overlook that preloading without surcharge requires longer waiting periods compared to surcharge methods, but it eliminates the cost of removing temporary loads. The design process typically involves:
Determining the required fill thickness based on the design load and soil unit weight.
Installing settlement plates and piezometers to track consolidation progress in real time.
Using Asaoka's method or hyperbolic curve fitting to predict final settlement from early readings.
This approach is particularly suited for sites with low hydraulic conductivity, where staged fill placement can prevent shear failure. The team monitors pore pressure dissipation closely, adjusting the fill rate to maintain a factor of safety above 1.4. Where drainage layers are poor, vertical drains may be added, but the preloading itself remains the primary consolidation driver. Regular plate load testing on the completed fill surface confirms that the achieved bearing capacity meets the project requirements before construction proceeds.
Technical reference image — Mackay
Local considerations
Mackay sits on Quaternary alluvial deposits with high moisture content and low undrained shear strength, often below 20 kPa in the top 5 meters. These conditions pose a risk of differential settlement if preloading is not designed for the full consolidation period. Without surcharge, the driving stress is limited to the fill itself, so any error in estimating the compression index (Cc) or the coefficient of consolidation (Cv) can lead to under-designed waiting times. The water table sits close to the surface, typically within 1–2 meters, requiring careful pore pressure management. Using corte directo tests on undisturbed samples helps validate shear strength parameters for stability checks during staged filling.
Full design of preloading fills without surcharge, including settlement analysis, staged fill schedules, and installation of settlement plates and piezometers. Monitoring reports track progress against predicted curves.
02
Consolidation Verification Testing
Oedometer tests (incremental loading) on undisturbed samples to determine Cc, Cr, and Cv. Field verification using Asaoka plots and pore pressure dissipation data to confirm design assumptions.
Applicable standards
AS 1726 – Geotechnical Site Investigations, AS 4678 – Earth Retaining Structures, AS/NZS 1170.1 – Structural Design Actions (permanent loads), AS 1289.6.2.2 – Determination of the coefficient of consolidation
Frequently asked questions
How long does preloading without surcharge take in Mackay clays?
Typical consolidation periods range from 6 to 18 months, depending on the clay layer thickness and drainage conditions. Sites with thin clay layers (2–3 m) may complete primary consolidation in 6–8 months, while thicker deposits (5–8 m) can require 12–18 months.
What monitoring equipment is used during preloading?
Settlement plates measure vertical displacement, vibrating wire piezometers track pore water pressure, and inclinometers monitor lateral movement. Data is logged automatically and reviewed weekly against the design settlement curve.
Can preloading without surcharge achieve residual settlements below 25 mm?
Yes, if the fill thickness is correctly sized and consolidation is allowed to reach at least 90% primary completion. Post-construction secondary compression (creep) in Mackay clays typically adds 5–10 mm over the first year, which must be included in the total settlement budget.
What is the typical cost range for a preloading design study in Mackay?
A preloading design study without surcharge, including field monitoring for 12 months, typically costs between AU$1,080 and AU$3,010. The final price depends on site size, number of monitoring points, and duration of observation.
