Our field crew rolls out with a custom-built sampling rig and a set of oedometers calibrated for high-plasticity clays. In Mackay, the dominant soil profile is black cracking clay derived from basalt weathering, with plasticity indices often exceeding 45%. We extract undisturbed block samples from test pits at 1.5 m depth and run free-swell tests on site using the AS 1289.7.1.1 method. The combination of high shrink-swell potential and seasonal rainfall exceeding 1600 mm per year creates a demanding testing environment that requires both laboratory precision and field judgment. For deeper profiles we complement the evaluation with an asentamiento diferencial analysis to estimate differential movement across slab foundations, and when the clay is particularly reactive we run límites de Atterberg on every sample to confirm the classification.
Plasticity indices above 45% and seasonal moisture swings of 2.5 m depth define Mackay's reactive clay hazard.
Methodology and scope
Mackay grew rapidly through the 1970s and 1980s as the sugar and coal industries expanded, and much of the residential development was placed directly on untreated expansive clays. Those early subdivisions now show characteristic damage patterns: cracked brick veneer, jammed doors, and sloping floor slabs. Our evaluation process follows a four-stage protocol: site classification via AS 2870, undisturbed sampling at multiple depths, oedometer swell tests under surcharge loads, and reactive depth determination. We also map the soil moisture variation zone, which in Mackay extends 2.5 to 3.0 m deep due to the alternating wet and dry cycles. The data feeds directly into foundation design recommendations for stiffened rafts or deep piers where the clay is active. Field permeability testing using a permeabilidad en campo setup helps confirm drainage conditions around the proposed footing system.

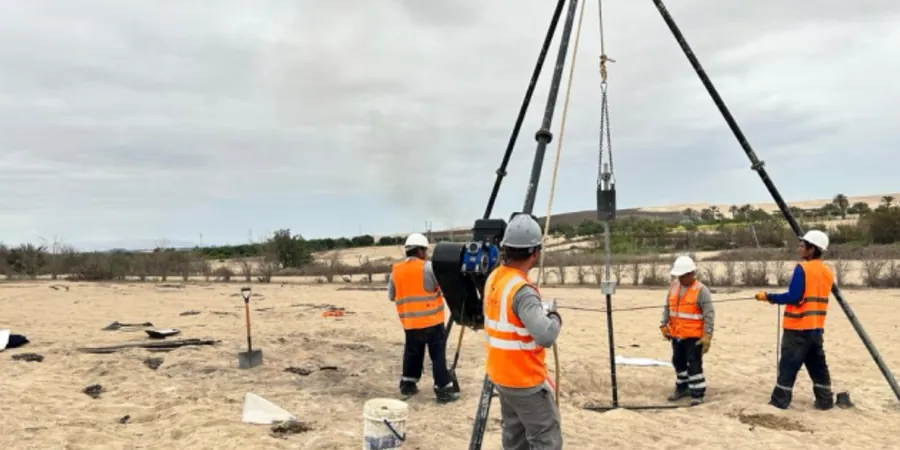

Technical reference image — Mackay
Local considerations
A warehouse slab in Paget cracked within eighteen months of construction because the geotechnical report underestimated the swell pressure at 2 m depth. The design used a waffle raft with 300 mm beams, but the actual heave exceeded 45 mm, pushing the slab edges up and pulling the internal beams apart. We have seen similar failures in residential homes around Andergrove and Beaconsfield where untreated clay beneath the slab edge dried out during a dry winter and then swelled when the wet season returned. The lesson is straightforward: expansive soil evaluation in Mackay must account for the full moisture variation cycle, not just the condition at the time of testing.
Full AS 2870 classification including determination of characteristic surface movement (ys) and reactive depth based on soil profile, climate data, and tree effects. We use oedometer swell tests at multiple surcharge levels to calculate expected heave for slab design.
02
Swell Pressure & Free Swell Index Testing
Laboratory measurement of swell pressure under constant volume conditions and free swell index using the AS 1289.7.1.1 method. Results are reported with depth profiles to identify the most active clay layers for foundation detailing.
03
Foundation Performance Review & Remediation Advice
Post-construction assessment of cracked slabs or distressed structures. We correlate field crack mapping with laboratory swell data to determine whether the movement is ongoing or stabilised, and recommend moisture control measures or underpinning options.
Applicable standards
AS 2870-2011 (Residential Slabs and Footings), AS 1289.7.1.1-2003 (Soil Swell Index), AS 1726-2017 (Geotechnical Site Investigations), AS 1289.3.2.1-2009 (Liquid and Plastic Limits)
Frequently asked questions
How deep does the reactive clay extend in Mackay?
The reactive zone typically reaches 2.5 to 3.0 m depth in Mackay, depending on local drainage and tree cover. Below that depth, the clay is generally saturated and stable. We determine the exact reactive depth using moisture content profiles and oedometer tests on samples from every metre.
What is the typical swell pressure for Mackay clays?
Swell pressures in Mackay's basalt-derived clays range from 80 kPa to 250 kPa under confined conditions. Higher values occur in the upper 1.5 m where the clay is desiccated and more active. Our laboratory tests use the constant-volume oedometer method following AS 1289.7.1.1.
How much does an expansive soil evaluation in Mackay cost?
A standard residential evaluation including site classification, two boreholes, and swell tests costs between AU$1,070 and AU$2,920 depending on the number of samples and depth of investigation. Commercial sites with deeper profiles or multiple test locations fall at the upper end of that range.
Can I build on expansive clay without a stiffened raft?
In Mackay, slab-on-ground construction without a stiffened raft is not recommended for sites classified as Class M or H under AS 2870. The reactive clay movement can exceed 40 mm, which will crack a standard slab. Deep piers or a stiffened raft with adequate beam depth are required to transfer loads below the reactive zone.
