Mackay’s growth as a regional hub for sugar exports and coal mining has pushed development into its hilly western suburbs and the low-lying coastal fringe. We have seen subdivisions carved into residual soils overlying the Back Creek Group sedimentary rocks, where natural slopes already sit at marginal stability. Without a site-specific slope stabilization design, earthworks here can trigger slow creep failures that take years to surface. Our team integrates local borehole records with laboratory strength testing, then runs limit-equilibrium models that account for the high seasonal rainfall — over 1,600 mm annually — that saturates the soil profile. This approach has saved developers in the Eimeo Road corridor from costly retaining-wall retrofits after the first wet season.
Mackay’s 1,600 mm annual rainfall and residual coal-measure soils demand a slope stabilization design that addresses both seepage and shear strength simultaneously.
Methodology and scope
A common mistake we observe on Mackay projects is assuming a single drainage blanket will suffice for all cut slopes. That assumption ignores the perched water tables found in the colluvial wedges above the Pioneer River valley. Our slope stabilization design tackles this by combining three elements: surface water diversion through lined benches, subsurface drainage via horizontal wick drains, and, where the factor of safety drops below 1.3, a structural reinforcement system. We also cross-reference the soil shear strength parameters obtained from ensayo triaxial with the in-situ density measured by densidad cono arena to calibrate the model. When the slope contains a weak clay seam, we run a corte directo test on an undisturbed sample to capture the residual friction angle. The result is a design that matches Mackay’s specific geology, not a textbook template.

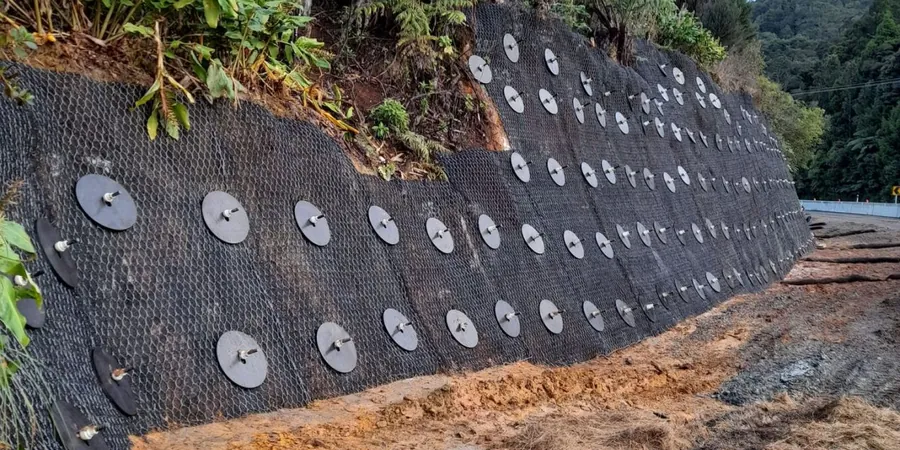

Technical reference image — Mackay
Local considerations
The subsurface profile across Mackay varies dramatically within a single block: you can encounter stiff desiccated clays at 2 m depth in the north and loose alluvial sands at 5 m along the river corridor. The risk of a translational slide increases sharply when a clay layer dips toward the excavation face, a condition we have mapped in the Mount Pleasant area. Our slope stabilization design always includes a sensitivity analysis of the groundwater table — raising it by just 0.5 m in a 10 m slope can reduce the factor of safety by 0.25. We flag these scenarios early so the earthworks contractor can schedule drainage installation before the cut reaches full height.
A desktop assessment using regional geology maps, historical borehole data from the Mackay City Council, and preliminary limit-equilibrium analysis. Suitable for pre-feasibility studies or early-stage subdivision layout decisions.
02
Detailed Stabilization Design
Full geotechnical model built from site-specific boreholes, including triaxial and direct shear testing, seepage analysis, and two or three reinforcement options (soil nails, geogrids, or drainage). Delivered with construction-ready drawings and a specification clause set.
03
Peer Review & Remediation Design
Independent review of an existing slope stabilization design, plus a remediation plan if signs of distress are present (cracks, bulging, seepage). We issue a certified report that satisfies insurance and council requirements.
Applicable standards
AS 4678-2002 (Earth-retaining structures), AS 1726-2017 (Geotechnical site investigations), AS/NZS 1170.4:2007 (Structural design actions – earthquake), FHWA-NHI-05-077 (Mechanically stabilized earth walls)
Frequently asked questions
What is the typical cost range for a slope stabilization design in Mackay?
For a standard 8–12 m high slope on a residential subdivision in Mackay, the design fee typically ranges between AU$2,780 and AU$10,790. The variation depends on the number of boreholes required, the complexity of the groundwater model, and whether a peer review is needed.
How long does a slope stabilization design take for a Mackay project?
A conceptual design can be turned around in 5–7 working days if existing borehole data is available. A detailed design with site investigation and laboratory testing takes 3–5 weeks, depending on the laboratory queue. We always factor in the wet season when scheduling field work.
Do I need council approval for slope stabilization works in Mackay?
Yes. Mackay Regional Council requires a geotechnical report stamped by a Chartered Professional Engineer (CPEng) for any slope steeper than 1:2 or higher than 3 m. The design must comply with AS 4678 and the council's development control plan. We prepare the report to that standard.
What soil conditions in Mackay cause the most slope failures?
The most problematic conditions are the colluvial clays overlying the Back Creek Group sedimentary rocks. These clays have a moderate to high plasticity and can lose up to 60% of their shear strength when saturated. We see failures along bedding planes in the interbedded sandstone and siltstone layers, especially where the dip is unfavourable.
Can you design a slope stabilization system for a site with existing cracking?
Absolutely. We first install inclinometers and piezometers to measure current movement and pore pressure. Then we model the failure mechanism and design a remedial system — typically a combination of horizontal drains and soil nails or a tied-back soldier pile wall. The goal is to stop movement within one wet season cycle.
