Mackay sits on the coastal floodplain of the Pioneer River, where decades of urban expansion have created large areas of uncontrolled fill up to 6 meters deep. These man-made deposits pose a direct challenge for structural support. A dedicated foundations on fill analysis in Mackay is essential to assess bearing capacity and long-term settlement before any slab or footing is placed. Without this study, differential movement can crack pavements and distort frames. The investigation typically starts with boreholes and asentamientos modeling to predict post-construction behavior.
Fill in Mackay often contains organic matter and buried topsoil that drives long-term creep settlement not captured by routine bearing capacity checks.
Methodology and scope
We follow AS 1726 for site investigation and AS 4678 for earth-retaining structures when fill interfaces with existing ground. In Mackay, the fill composition varies from silty sands to demolition rubble, so a single approach never works. The analysis includes standard penetration tests, moisture content profiling, and clasificacion-suelos through sieve and hydrometer methods. Key parameters we evaluate:
Compaction level (relative density from N-SPT)
Collapse potential on wetting
Consolidation settlement under design load
Chemical aggressiveness (sulfates, chlorides)
Each result feeds into a settlement calculation that respects both ultimate and serviceability limit states.

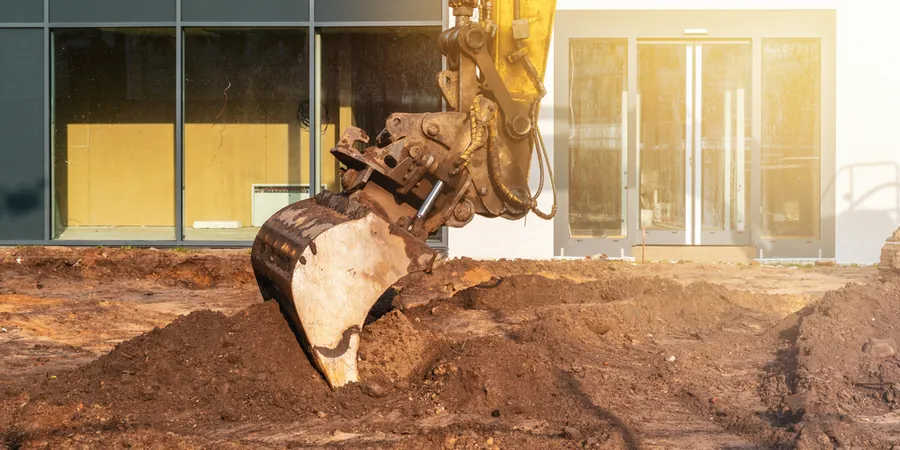

Technical reference image — Mackay
Local considerations
The main risk in Mackay fill is hidden differential movement. Many sites look flat and stable, but buried tree stumps or pockets of uncompacted material cause localized drops years after construction. We also see rising groundwater after wet seasons that triggers internal erosion of fine particles, leading to voids beneath footings. A thorough foundations on fill analysis in Mackay identifies these hazards early. The geotechnical report must include a clear risk matrix and recommend ground improvement if settlement exceeds 25 mm under service loads.
Boreholes, test pits, and undisturbed sampling to classify fill type, measure thickness, and collect specimens for lab testing. We log each layer per AS 1726.
02
Settlement & Bearing Capacity Modeling
Finite element or analytical models that predict immediate and consolidation settlement under working loads, including creep effects from organic fill pockets.
03
Ground Improvement Recommendations
Options such as dynamic compaction, stone columns, or preloading with wick drains, sized to match the required bearing pressure and tolerable settlement.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, AS 1289.6.3.1 Standard test for SPT, AS 2159:2009 Piling design and installation
Frequently asked questions
What is the typical cost range for a foundations on fill analysis in Mackay?
For a standard residential block with two boreholes and lab testing, the cost ranges between AU$1.210 and AU$4.130. Larger commercial sites with multiple boreholes and advanced modeling sit at the upper end.
How deep do boreholes need to be in Mackay fill?
Boreholes should extend at least 3 meters into natural ground below the fill base, or to refusal. In Mackay's Pioneer floodplain, this often means depths of 6 to 10 meters from surface level.
What fill materials are most problematic in Mackay?
Silty sands with high moisture content and demolition rubble with variable particle size cause the most issues. Organic-rich fill from old swamp areas can settle for decades.
Does AS 1726 require specific testing for filled ground?
Yes. AS 1726 mandates classification, compaction testing, and in-situ density checks for fill. We also recommend collapse potential testing (AS 1289.7.1) when the fill is unsaturated and loose.
