In Mackay, we often find that the subsurface is more complex than expected, especially near the Pioneer River where alluvial deposits mix with coastal sands. That's where a GPR (Ground Penetrating Radar) survey becomes essential. It lets us map buried utilities, voids, and changes in soil layers without digging. Before we start any invasive investigation, like a test pit or drilling program, running a GPR line across the site gives us a clear picture of what lies beneath. It saves time and prevents accidental strikes on underground services.
We adjust antenna frequencies based on Mackay's high soil moisture to get clear radar returns even in wet coastal sands.
Methodology and scope
Mackay's tropical climate means the ground stays wet for much of the year. High moisture content can attenuate radar signals, so we adjust our antenna frequencies accordingly. For shallow targets like pipes or rebar, we use a 1.6 GHz antenna. For deeper investigations, like bedrock or groundwater table, a 250 MHz antenna works better. We also pair GPR with standard penetration testing to correlate radar reflections with actual soil resistance. This cross-referencing improves interpretation accuracy significantly in the mixed soils around Mackay.

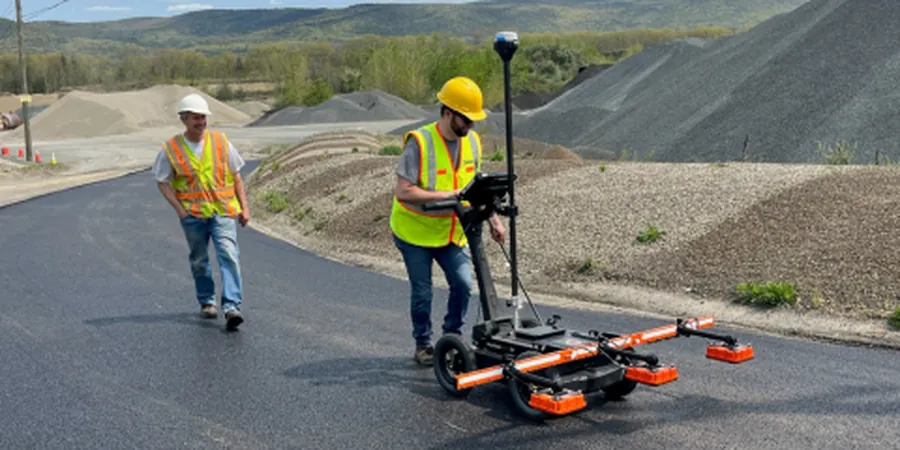

Technical reference image — Mackay
Local considerations
Mackay has seen rapid development over the last two decades, with new subdivisions pushing into former cane fields and low-lying floodplains. Many of these areas have undocumented drainage pipes, old irrigation lines, or abandoned septic systems. A GPR survey here reduces the risk of hitting these during excavation. It also helps identify zones of loose fill or buried organic matter that could cause differential settlement later. We always recommend scanning the full site footprint before any earthworks begin.
Locating and marking buried pipes, cables, and conduits before excavation. We produce plan-view maps with depth estimates for each target.
02
Concrete scanning
Detecting rebar, post-tension cables, and voids inside concrete slabs. Common for saw-cutting, coring, or structural assessments.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth retaining structures, AS 1289.7.3 Standard guide for using the surface ground penetrating radar method
Frequently asked questions
How deep can a GPR survey reach in Mackay soils?
In the sandy coastal soils near Mackay, we typically get good returns down to 5-8 m. In heavier clays around the cane belt, depth drops to 2-3 m due to signal attenuation. We always do a test line first to confirm effective depth on your site.
Will wet ground affect the results?
Yes, but we adjust for it. Mackay's high rainfall means soil moisture is often above 25%. We use lower frequency antennas (250 MHz) for deeper targets and increase gain to compensate. The data still gives reliable utility locations and void detection.
How much does a GPR survey cost in Mackay?
For a typical residential block (600 m²) expect between AU$1,670 and AU$2,800. Larger commercial sites with full grid scanning run AU$3,500 to AU$12,080 depending on area and antenna frequency requirements.
