Mackay sits on a mix of Quaternary alluvial deposits and residual soils derived from the coastal ranges, with the water table often found between 2 and 5 metres below ground depending on the proximity to the Pioneer River. For deep basement excavations or shaft construction in this environment, diaphragm wall design must account for variable soil stiffness and the potential for seepage through sand lenses. A solid geotechnical model, built on borehole data and in-situ testing, becomes the foundation for selecting panel dimensions and reinforcement that match the local ground conditions. Before finalising the wall geometry, the team typically runs a ground response analysis to evaluate how the surrounding strata will behave under seismic loading, which is especially relevant given Mackay's location in a moderate seismic zone under AS/NZS 1170.4.
A diaphragm wall's performance hinges on the match between panel thickness and the local soil's modulus, not just on the steel reinforcement ratio.
Methodology and scope
Soils near the city centre, such as those around the Mackay Harbour precinct, tend to show higher clay fractions and lower permeability than the coarser sands found in the outer suburbs like Eimeo or Andergrove. This contrast directly influences the choice between a cast-in-situ reinforced concrete diaphragm wall and a secant pile wall, as well as the need for temporary support systems during excavation. In the softer marine clays near the coastline, the wall's embedment depth must be sufficient to resist basal heave, and the structural design often incorporates a slope stability check to ensure that the retained ground does not fail under active pressure. Key parameters affecting the design include:
Undrained shear strength (su) measured via triaxial or vane shear tests
Stiffness modulus (E') from pressuremeter or SPT correlations
Hydraulic conductivity (k) for seepage and dewatering design
Bond stress between concrete and soil for panel joint detailing

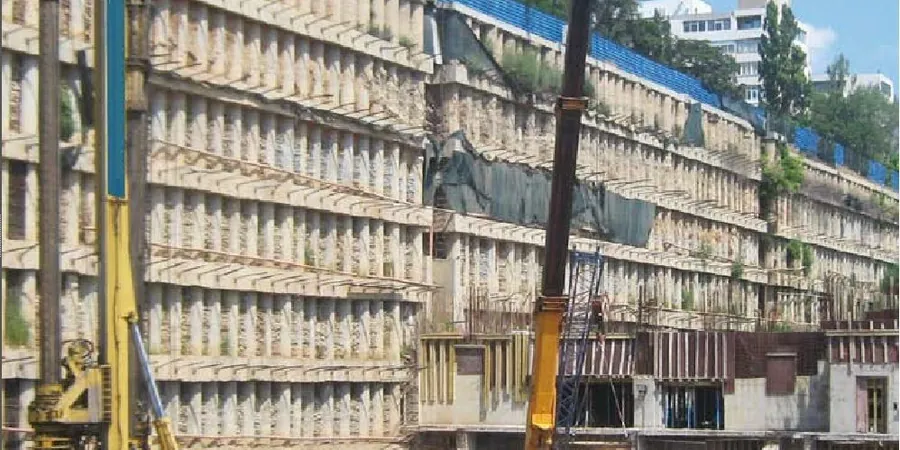

Technical reference image — Mackay
Local considerations
In Mackay, one of the most common issues the team encounters is the presence of loose sand layers interbedded with stiff clays, which can cause sudden loss of bentonite slurry during panel excavation. If the slurry level drops too fast, the trench may collapse, leading to costly delays and potential damage to adjacent structures. A proper bentonite mix design and continuous monitoring of fluid density and viscosity are essential to maintain trench stability. Furthermore, the high seasonal rainfall—Mackay averages around 1,600 mm per year—means that surface water ingress into open trenches must be managed with diversion drains and sump pumps to prevent erosion of the working platform.
Boreholes, SPT, and laboratory testing to characterise soil layering and groundwater conditions for wall design.
02
Structural Design & Reinforcement Detailing
Panel thickness, reinforcement layout, and concrete mix selection based on applied loads and serviceability limits.
03
Bentonite Slurry Specification & QA/QC
Formulation of slurry properties and on-site testing protocols to ensure trench stability during excavation.
04
Construction Support & Instrumentation
Monitoring of wall deflections, groundwater levels, and adjacent settlement using inclinometers and piezometers.
Applicable standards
AS 4678:2002 – Earth-retaining structures, AS 1726:2017 – Geotechnical site investigations, AS/NZS 1170.4:2007 – Earthquake actions, FHWA-NHI-14-007 – Diaphragm walls design and construction
Frequently asked questions
What is the typical depth range for diaphragm walls in Mackay?
Depths commonly range from 15 to 35 metres, depending on the number of basement levels and the depth of competent bearing strata. Deeper walls up to 40 m have been designed for shaft structures.
How does the high water table affect diaphragm wall design?
A high water table increases hydrostatic pressure on the wall and requires careful dewatering or cut-off design. The wall's embedment must extend below the excavation base to prevent piping or heave, and the concrete tremie method must be used to avoid washout.
What is the cost range for diaphragm wall design in Mackay?
The design fee typically ranges from AU$3,230 to AU$10,190, depending on wall length, depth, and the complexity of the soil profile. Detailed geotechnical investigations are billed separately.
Can diaphragm walls be used in Mackay's marine clays near the harbour?
Yes, but the low shear strength and high compressibility of marine clays require larger embedment depths and sometimes a deeper toe to mobilise passive resistance. A 3D finite element analysis is recommended to capture consolidation effects.
What is the difference between a diaphragm wall and a secant pile wall?
A diaphragm wall is a cast-in-situ reinforced concrete wall built in panels using a trench excavation method, while a secant pile wall consists of interlocking concrete piles. Diaphragm walls offer higher stiffness and better water tightness for deep excavations, but secant piles can be more economical for moderate depths.
