Mackay sits on a flat coastal floodplain dissected by the Pioneer River, with deep alluvial deposits of soft clays and loose sands extending more than 25 metres in places. The seasonal cyclone rainfall pushes the water table within a metre of the surface, which complicates conventional deep foundations. Micropile design in Mackay has become the go-to option for projects where access is tight or vibration must be controlled. These small-diameter drilled and grouted piles transfer structural loads through the problem layers into the underlying bedrock or dense gravel. Before specifying a micropile layout, the team typically runs a permeability test at the site to understand pore pressure behaviour during grouting.
Micropile design in Mackay handles soft alluvial clays and high groundwater with a single small-diameter drilled system that requires no dewatering.
Methodology and scope
The difference between a commercial block near the Mackay Harbour and a residential site in Mount Pleasant is largely about the depth to competent material. Harbour-side ground often contains soft estuarine clays that require longer pile embedment, while the elevated suburbs show stiff residual profiles with occasional boulders. Micropile design in Mackay adapts to both extremes because the casing and bar size can be adjusted without mobilising a large rig. For the harbour zone, we couple the micropile with a reinforced concrete pile cap to spread the load across a group of piles. The key advantages are:
Installation in headroom as low as 2.5 metres inside existing buildings
Minimal spoil removal compared to bored piles
Capacity verification through static load testing per AS 2159
Each layout is checked against the local geotechnical model built from boreholes and SPT data.

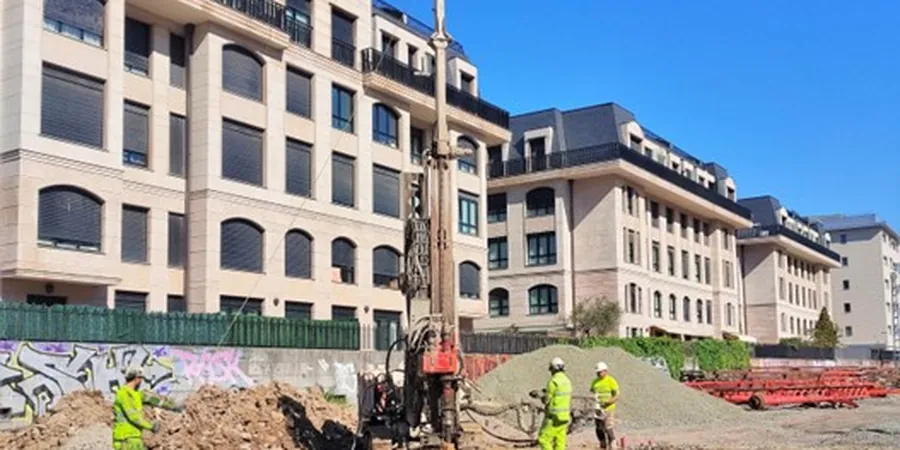

Technical reference image — Mackay
Local considerations
Mackay recorded a 5.3 magnitude earthquake in 1960, and although major seismic events are rare, the soft alluvial plain amplifies ground motion by a factor of 1.5 to 2 according to AS 1170.4 site class D. A poorly designed micropile can lose skin friction under cyclic loading if the grout-to-soil bond is not verified. The real risk is differential settlement between piles founded on variable depth rock. That is why our micropile design in Mackay always includes a proof load test on at least 1% of piles, with the acceptance criteria set to 10 mm residual displacement at 1.5 times the working load.
For houses in older suburbs like West Mackay showing foundation settlement, we design 150 mm diameter micropiles installed through the existing footing via a small hydraulic rig. Each pile is load tested to 1.5 times the design load before connection.
02
Commercial Retrofit & Upgrade
When a commercial building near the city centre needs additional floors or a roof extension, our team designs a perimeter micropile system that ties into the existing raft with a reinforced ring beam. Design follows AS 2159 with a minimum factor of safety of 2.5 on shaft capacity.
03
Bridge Approach & Slope Stabilisation
For bridge abutments along the Bruce Highway or cane railway crossings, we specify inclined micropile groups to resist lateral spreading. The design includes a structural cap beam and corrosion protection per AS 2159 for aggressive soil conditions.
Applicable standards
AS 2159-2009 Piling — Design and installation, AS 5100.3 Bridge design — Foundation and soil-supporting structures, FHWA-NHI-05-039 Micropile Design and Construction (adapted for Australian practice), AS 1289 Standard test method for piles under static axial compressive load
Frequently asked questions
How much does micropile design in Mackay typically cost?
For a standard residential underpinning design, the engineering and testing package ranges between AU$2.340 and AU$6.240, depending on pile count and load test requirements. Commercial projects with multiple test piles fall at the higher end.
What soil conditions in Mackay are best suited to micropiles?
Micropiles work well in the soft alluvial clays and loose sands of the Pioneer River floodplain, where larger piles would require casing to prevent collapse. They also perform in the stiff residual profiles of Mount Pleasant and North Mackay, where boulders make driven piles impractical.
How deep do micropiles need to go in Mackay?
Depths vary from 8 to 22 metres depending on location. Harbour-side sites with thick estuarine clays require deeper embedment into the underlying siltstone, while elevated suburbs need only 6 to 10 metres to reach weathered rock. The design is based on a borehole log from the specific site.
Can micropiles support lateral loads from wind or seismic events?
Yes. Inclined micropiles can be arranged in a battered pattern to resist lateral forces. For Mackay's wind region C, the design checks lateral deflection at serviceability limit state per AS 1170.2, typically keeping pile head movement below 15 mm.
