Raft and mat foundation design in Mackay must account for the region's variable alluvial and estuarine deposits, where soft clays and loose sands often underlie the surface crust. AS 4678-2002 provides the structural design framework, but the geotechnical parameters controlling bearing capacity and differential movement come from site investigation. Before finalising a raft layout, we typically correlate SPT N-values with consolidation test results to estimate total and differential settlement under service loads. For sites near the Pioneer River floodplain, the presence of compressible layers deeper than 6 metres often governs the raft thickness and reinforcement layout. Combining raft foundation design with a consolidationanalysis allows us to predict long-term creep behaviour, while soil classification ensures the soil profile is correctly categorised per AS 1726.
The modulus of subgrade reaction assumed in the structural model must be verified by plate load tests when interbedded clay and sand layers are present in Mackay.
Methodology and scope
Mackay's subtropical climate, with an average annual rainfall above 1,600 mm, means the water table fluctuates significantly between the wet and dry seasons. This seasonal variation directly affects the raft design because buoyancy forces and pore pressure changes alter the effective stress beneath the mat. We use a load factor of 1.2 for dead load and 1.5 for live load as per AS/NZS 1170.0, but the geotechnical resistance factors are adjusted based on the reliability of the investigation. A key feature of our approach is integrating in-situ density testing to verify compaction of engineered fill before the raft is poured. When the soil profile includes interbedded clay and sand layers, we also run plate load tests to confirm the modulus of subgrade reaction assumed in the structural model. These field measurements reduce the uncertainty in the settlement predictions and allow for a more economical reinforcement design without compromising safety.

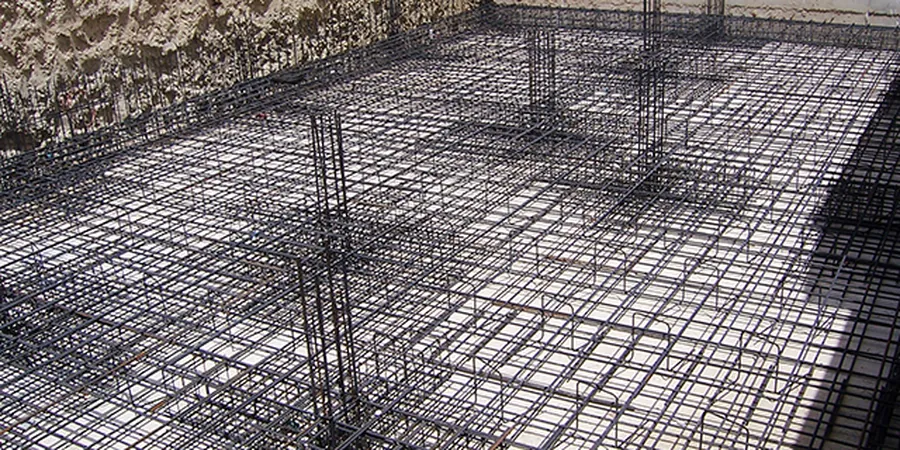

Technical reference image — Mackay
Local considerations
A common oversight in Mackay is assuming the surface crust extends uniformly across the site. We have seen cases where a stiff desiccated clay layer, only 2 metres thick, overlies soft compressible silt. The raft is then designed for the crust's capacity, but after a wet season the silt consolidates under the building load, causing differential settlement that cracks the slab. Another risk is ignoring the effect of sugar cane irrigation on the water table, which can raise pore pressures by 0.5 to 1.0 metres during the growing season. We recommend installing at least two standpipe piezometers on sites larger than 1,000 m² to monitor seasonal fluctuations before finalising the raft design.
Boreholes to 10–15 m depth, SPT testing, undisturbed sampling, and laboratory consolidation tests to characterise compressible layers.
02
Bearing capacity and settlement analysis
Terzaghi and Hansen bearing capacity equations, plus one-dimensional consolidation settlement estimates using oedometer data.
03
Modulus of subgrade reaction determination
Plate load tests (AS 1289) and correlation with SPT N-values to provide realistic ks values for structural raft design.
04
Differential settlement mitigation strategies
Recommendations for raft thickness, reinforcement layout, and localised ground improvement (e.g., stone columns) where soft pockets exist.
Applicable standards
AS 4678-2002 – Earth-retaining structures (reference for load cases), AS 1726-2017 – Geotechnical site investigations, AS/NZS 1170.0:2002 – Structural design actions
Frequently asked questions
When should I choose a raft foundation instead of a strip footing in Mackay?
Raft foundations are preferred when the allowable bearing capacity is below 100 kPa, when differential settlement is a concern, or when the water table is within 1.5 m of the surface. In Mackay's alluvial areas, rafts distribute loads over a wider area and reduce the risk of localised failure in soft clays.
How does the seasonal water table affect raft design in Mackay?
Seasonal rises of 0.5 to 1.5 m during the wet season reduce effective stress and increase uplift forces on the raft. We account for this by using the highest recorded water table in the design and, if necessary, specifying a drainage layer or pressure relief system below the mat.
What is the typical cost range for a raft foundation design study in Mackay?
The cost for a complete geotechnical investigation and raft design report in Mackay ranges between AU$1.770 and AU$7.280, depending on site size, number of boreholes, and laboratory testing requirements. Complex sites with deep compressible layers fall at the upper end.
Can a raft foundation be designed for a sloping site in Mackay?
Yes, but the design must account for lateral earth pressures and potential instability. We perform slope stability analysis using Spencer's method and, if required, combine the raft with a retaining wall or tie-back anchors to resist sliding forces.
