Many construction teams in Mackay assume that standard fill compaction is enough for every site, but the deep alluvial deposits and soft estuarine clays common across the Pioneer River floodplain often need something more. Without addressing the loose or compressible layers at depth, excessive settlement can show up months after the slab is poured. That is where a site-specific dynamic compaction design becomes critical — it targets the deeper profile, not just the surface. We frequently pair this approach with precarga y sobrecarga to accelerate consolidation in the soft zones before the dynamic energy is applied, and we always verify layer response through densidad cono de arena testing post-treatment. Getting the energy per drop and grid spacing right from the start saves weeks of rework later.
Dynamic compaction design targets the deeper profile, not just the surface — critical for Mackay's estuarine clays and loose alluvial sands.
Methodology and scope
We design the dynamic compaction sequence to AS 4678-2002 for earth-retaining structures and AS 1726-2017 for site investigation, adapting the tamper mass, drop height, and pass pattern to the specific soil profile found in Mackay. A typical sequence starts with high-energy primary passes on a 6-8 m grid, followed by low-energy ironing passes to densify the upper 1-2 m. Before mobilising the crane, we run ensayo SPT and calicatas exploratorias to map the depth of loose sand and soft clay lenses. The design also accounts for the shallow groundwater table — Mackay's wet season can push the water table within 1 m of the surface, so we incorporate dewatering or drainage measures into the energy calculations. Each parameter is logged and cross-checked against the post-treatment verification criteria.

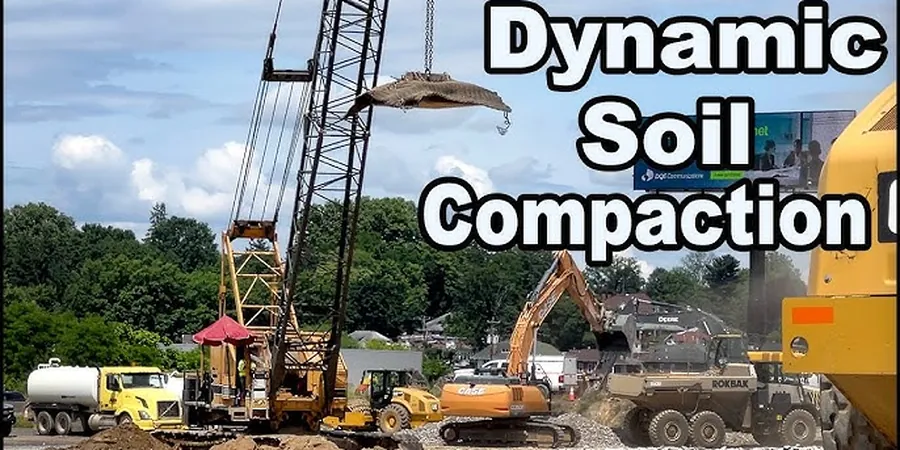

Technical reference image — Mackay
Local considerations
Mackay sits on the floodplain of the Pioneer River and receives an average annual rainfall of around 1,600 mm, concentrated between December and March. The combination of high rainfall and a shallow water table means that loose granular layers can remain saturated for extended periods, reducing the effectiveness of dynamic compaction if the timing and drainage are not factored into the design. Ignoring the seasonal moisture variation can lead to incomplete densification and long-term differential movement under working loads. A solid compaction design accounts for these wet-season constraints and includes contingency for rest periods between passes.
We calculate tamper mass, drop height, grid pattern, and number of passes based on the site's soil stratigraphy, groundwater conditions, and target depth of improvement. The design is delivered as a step-by-step sequence with hold points for verification testing.
02
Post-Treatment Verification & Reporting
After the compaction passes, we carry out plate load tests and DCP soundings at each grid node. The results are compared against the design criteria and compiled into a compliance report signed off by the laboratory's technical reviewer.
Applicable standards
AS 4678-2002: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS 1289.6.3.3: Soil compaction and density tests
Frequently asked questions
What is the depth range achievable with dynamic compaction in Mackay's soils?
In the alluvial sands and estuarine clays typical of Mackay, a properly designed dynamic compaction program can achieve improvement depths of 4-10 m, depending on the tamper mass, drop height, and number of passes. The shallow groundwater table may limit the effective depth in soft clays, so we often combine the design with pre-loading or wick drains for deeper consolidation.
How does the wet season affect dynamic compaction design in Mackay?
Mackay's wet season (December to March) brings high rainfall and a water table that can rise to within 1 m of the surface. Saturated loose sands do not respond well to dynamic compaction because pore pressures cannot dissipate quickly. Our design includes drainage measures, a schedule that avoids the wettest months, and rest periods between passes to allow pore pressure equilibration.
What is the typical cost range for a dynamic compaction design service in Mackay?
The fee for a full dynamic compaction design, including site investigation review, energy calculations, and post-treatment verification, generally falls between AU$2,020 and AU$5,640. Final pricing depends on the site area, number of verification points, and the complexity of the soil profile.
