Mackay sits on deep alluvial deposits from the Pioneer River, with soft clays and silty sands extending up to 15 meters below the surface. The water table sits high, often less than 2 meters deep, which complicates conventional foundation solutions. Stone column design in Mackay addresses precisely these conditions — the columns act as vertical drains during construction and as stiff reinforcement after consolidation. Before specifying diameters and spacing, we run site-specific lab tests like Atterberg limits and consolidation to classify the clay behaviour. The method works across the city, from the port area to the industrial estates south of the Bruce Highway.
Stone columns reduce total settlements by 50-70% compared to untreated ground, even in Mackay's softest estuarine clays.
Methodology and scope
Mackay expanded rapidly through the 1970s and 80s, with new suburbs spreading onto floodplain clays and former cane paddocks. Geotechnical records from that era show fill thickness varying wildly within a single block. Modern stone column design in Mackay relies on three steps: first, a CPT or SPT campaign to map soil variability; second, settlement analysis using elastic and consolidation parameters; third, column layout optimisation. We always cross-check with plate load tests on trial columns to verify modulus values. The vibro-replacement rigs we mobilise can reach 12-14 meters, which covers the full soft layer in most Mackay sites.
Column diameter: 0.6 m to 1.1 m, depending on stone size and compaction energy
Spacing: typically 1.8 m to 3.0 m in triangular grid
Replacement ratio: 15% to 35% of the foundation area
For sites with organic pockets, we pair stone columns with prefabricated vertical drains to accelerate consolidation further.

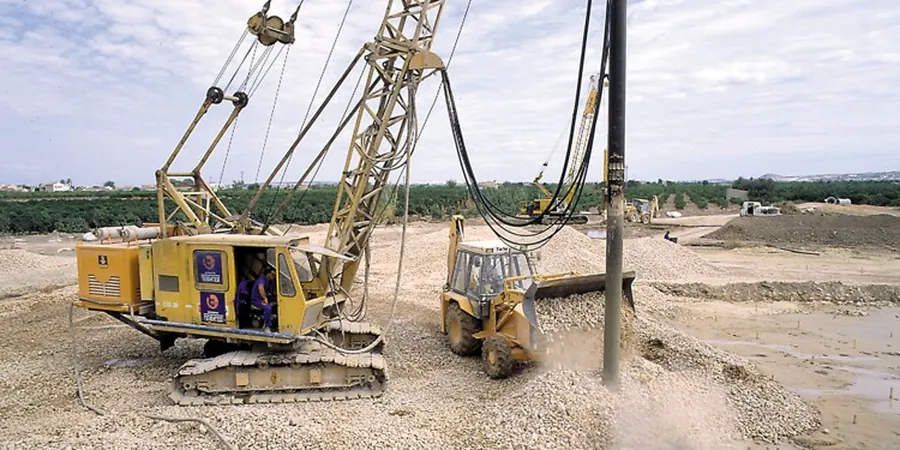

Technical reference image — Mackay
Local considerations
The main risk in stone column design for Mackay is lateral bulging of the column into very soft clays (Su < 20 kPa). If the surrounding soil cannot provide enough confinement, the stone column loses stiffness and settlement performance drops. We manage this by specifying larger column diameters and tighter spacing in the weakest layers, or by using a geotextile sleeve in extreme cases. Another risk is contamination of the stone column by fine material during installation — tight quality control on backfill grading and compaction energy is essential. Our team follows the FHWA design manual for vibro-replacement and runs trial columns before production.
Detailed stone column design in Mackay including settlement analysis, column layout optimisation, and bearing capacity checks. We use finite element software (PLAXIS 2D) and closed-form solutions from Balaam & Booker. Deliverables include column spacing plans, construction specifications, and QA/QC procedures.
02
Installation Supervision & Load Testing
On-site supervision of vibro-replacement rigs, real-time monitoring of stone consumption and compaction current. We perform trial columns with plate load tests to verify modulus and settlement reduction. Final report includes as-built column logs and load test results.
Applicable standards
AS 4678 – Earth Retaining Structures (column performance criteria), FHWA NHI-05-042 – Design and Construction of Stone Columns, AS 1289 – Pile Load Test (adapted for column modulus verification)
Frequently asked questions
How does stone column design differ for the soft alluvial clays in Mackay compared to other regions?
Mackay's alluvial clays have high plasticity (PI often > 40) and low undrained shear strength (Su typically 10-25 kPa). Stone column design here requires tighter spacing and higher replacement ratios than in stiffer soils. The high water table also demands careful drainage design during installation to avoid pore pressure build-up.
What is the typical cost range for stone column design and installation in Mackay?
For a standard industrial or commercial site in Mackay, the cost ranges between AU$2,310 and AU$7,140 per column, depending on depth, diameter, and total project volume. This includes design, material, installation, and load testing. Volume discounts apply for projects with over 200 columns.
Can stone columns be used for residential slab-on-ground construction in Mackay?
Yes, but only when the soft clay layer exceeds 3 meters and conventional stiffened raft slabs become uneconomical. Stone column design for residential sites typically uses 0.6 m diameter columns at 2.5 m spacing, achieving a bearing capacity of 150-200 kPa. The cost is often comparable to deep piling for single-storey homes.
What stone aggregate specification is recommended for vibro-replacement in Mackay?
We specify crushed river gravel or hard quarry rock with a particle size of 20-75 mm, less than 5% fines, and a Los Angeles abrasion loss below 30%. The aggregate must be non-reactive with the groundwater — in Mackay's acidic alluvial soils, we avoid limestone-based stone.
