In Mackay, the alluvial floodplains and coastal dunes create a challenging soil profile that changes block by block. We see it every time — clay caps over loose sands near the Pioneer River, then stiff volcanic clays toward the hills. That is exactly where a Standard Penetration Test (SPT) becomes essential. With a 63.5 kg hammer dropping 760 mm, we measure blow counts (N-values) every 1.5 m to map density and strength. Before we interpret those numbers, we always cross-check with granulometry to understand the grain distribution behind each refusal or drop. Mackay’s subtropical rainfall also saturates shallow sands, so SPT results guide decisions on excavation support and dewatering needs right from the start.
The SPT hammer drop of 760 mm is identical whether you are testing under the City Hall or near the marina — consistency is the point.
Methodology and scope
Mackay grew fast as a sugar port, and older buildings sit on variable fills without records. That legacy makes SPT the go-to tool for verifying ground conditions before any retrofit or extension. Our team follows AS 1726 with a split-spoon sampler that recovers disturbed material for classification. We record N-values at each 450 mm interval; the middle 300 mm gives the corrected N60. When we hit dense layers near the airport runway or the Bruce Highway corridor, the SPT hammer energy is calibrated to AS 1289.6.3.1 standards. For projects on soft estuarine clays, we pair the test with veleta de campo to measure undrained shear strength in parallel. Every rig in Mackay carries a calibrated anvil and a real-time energy monitor — no guesswork, just repeatable numbers.

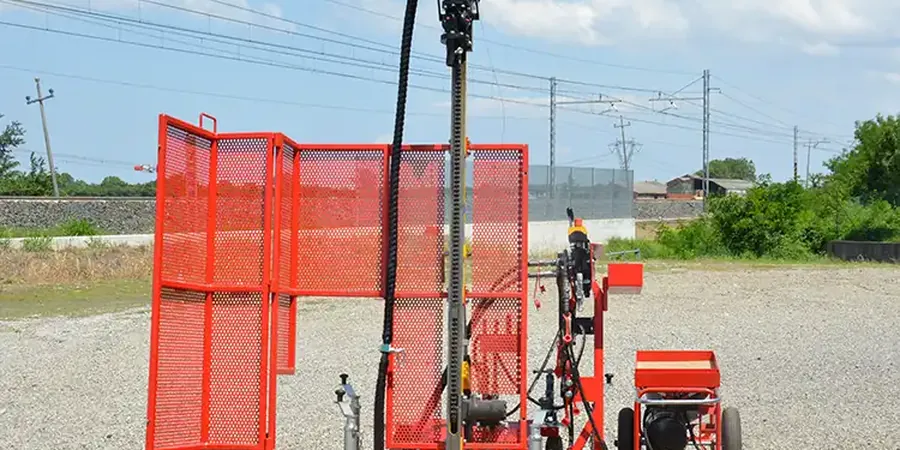

Technical reference image — Mackay
Local considerations
Compare the northern suburbs near Slade Point with the city centre: Slade Point sits on cemented dune sands that give N-values of 30 to 50, while central Mackay overlies soft alluvium with N-values as low as 4. That contrast means a foundation design that works in one block fails in the next. The biggest risk we see in Mackay is building on shallow sand layers that liquefy during cyclonic shaking. Without SPT data, you simply do not know if those sands are loose (N < 10) or dense (N > 30). One missed test can mean differential settlement, slab cracking, or worse — structural instability during a wet-season storm.
Continuous SPT every 1.5 m to depths of 30 m. Includes split-spoon recovery, N60 correction, and field classification per AS 1726. Ideal for residential slabs, light commercial, and retaining walls in Mackay's alluvial zones.
02
SPT with Seismic Downhole
Adds shear-wave velocity (Vs) measurement at each SPT depth using a downhole geophone. Used for site class determination (AS 1170.4) and liquefaction assessment in Mackay's sandy coastal areas.
Applicable standards
AS 1726 – Geotechnical Site Investigations, AS 1289.6.3.1 – Standard Test Method for SPT, AS 4678 – Earth Retaining Structures, AS/NZS 1170.0 – Structural Design Actions
Frequently asked questions
What does the SPT tell you about Mackay's soils?
The SPT measures blow count (N-value), which correlates with relative density in sands and consistency in clays. In Mackay, we use it to identify loose sands below the water table and stiff clay layers under the Pioneer River floodplain. The N-value is the input for bearing capacity, settlement, and liquefaction analysis.
How much does an SPT test cost in Mackay?
A standard SPT boring with sampling costs between AU$910 and AU$1,050 per test depth, including mobilisation within the Mackay urban area. The final price depends on total depth, number of tests, and access conditions. Contact us for a site-specific quote.
What is the difference between N-value and N60?
Raw N-value is the sum of blows for the last 300 mm of the test. N60 corrects that raw number to a 60% hammer energy ratio, removing rig-to-rig variability. In Mackay, we always report N60 so engineers can compare data across different contractors and use published correlations for settlement and liquefaction.
Can SPT detect liquefaction hazard in Mackay?
Yes. The SPT is the standard method for liquefaction triggering assessment. We measure N60, fines content (from recovered sample), and cyclic stress ratio from the design earthquake. In Mackay, loose sands with N60 below 15 and high water tables are flagged as liquefiable. The test depth typically goes to 15 m to cover the critical zone.
