Mackay grew fast from the 1970s onward, driven by sugar exports and later by coal port expansion. That development pushed construction onto floodplains and old alluvial terraces where the ground changes every few meters. Getting the soil classification right from the start saves time and avoids surprises. We use USCS and AASHTO systems to group soils by grain size and plasticity, and we always cross-check results with a granulometry test to confirm the sieve curves. It sounds basic, but many sites here have layers that look similar and behave completely differently under load.
The biggest trap in Mackay is assuming similar-looking clays behave the same — USCS plasticity limits catch that difference every time.
Methodology and scope
Mackay sits at about 11 meters above sea level and gets over 1,500 mm of rain a year — that much water moves fines around and creates unpredictable profiles. In our experience, the coastal plain here often shows a mix of high-plasticity clays and loose sands, which makes classification especially important. We follow AS 1726 for sampling and AS 4678 for retaining wall design, and we run Atterberg limits on every clay sample to separate CH from CL. When the project involves road subgrade, we also apply AASHTO M 145 to group materials for pavement design. A quick field vane test in soft clays helps us double-check consistency before we finalize the classification.

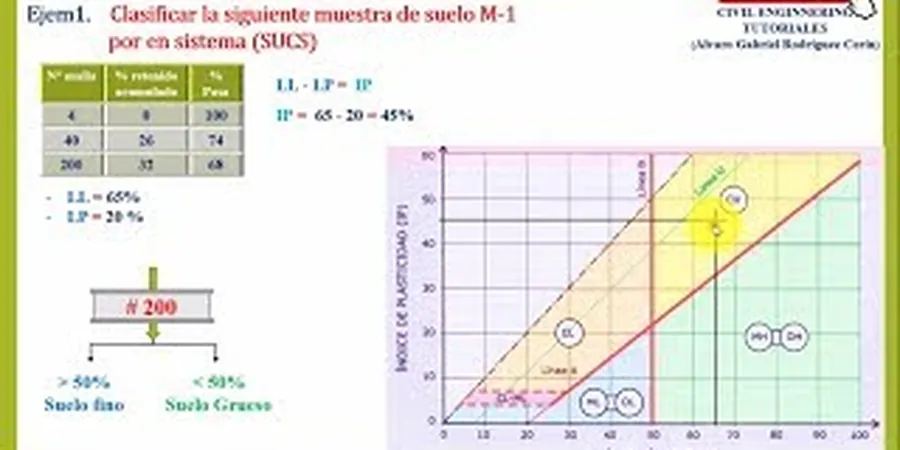

Technical reference image — Mackay
Local considerations
What we see most often in Mackay is a sand layer that looks clean but contains enough silt to drop its permeability and cause drainage issues during rain events. If you classify it as SW when it is really SM, the compaction specs and bearing estimates will be off. Another common trap is the high-plasticity clay that dries out and cracks deep — that crack pattern changes the mass behavior and can mislead the classification if you only look at the surface. That is why we always combine visual-manual description with laboratory tests before we assign a final USCS symbol.
Full laboratory classification including sieve analysis, liquid limit, plastic limit, and plasticity index. We assign group symbols and group names following AS 1726 and AS 1726.
02
AASHTO classification for road subgrade
Group index calculation and AASHTO group assignment for pavement design. We run the full suite of sieves and plasticity tests and deliver a report with recommended CBR ranges.
03
Field visual-manual classification
On-site soil description using the USCS field method (AS 1726). We identify color, odor, grain shape, dilatancy, toughness, and dry strength, and correlate with nearby boreholes.
04
Classification for expansive soils
Special focus on high-plasticity clays (CH) common in Mackay's coastal plain. We measure free swell and shrinkage limits to separate expansive from non-expansive clays before foundation design.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 1726 Standard Practice for Classification of Soils for Engineering Purposes (USCS), AASHTO M 145-91 Standard Specification for Classification of Soils (AASHTO system)
Frequently asked questions
Why do I need USCS classification for a house foundation in Mackay?
Because the soil in Mackay varies a lot within the same block — one spot may have stiff clay and another loose sand. USCS tells you exactly what you are dealing with so the engineer can pick the right footing type and depth.
How much does a soil classification test cost in Mackay?
For a standard USCS classification with sieve and Atterberg limits, expect between AU$100 and AU$170 per sample. The price can go up if you need additional tests like swell or organic content.
What is the difference between USCS and AASHTO classification?
USCS focuses on grain size and plasticity for general geotechnical use. AASHTO groups soils by their performance as road subgrade material, using a group index. For most Mackay projects we run both and cross-reference them.
Can you classify soil from a test pit sample or do I need a borehole?
We can classify soil from test pits, hand augers, or boreholes — as long as we get a representative undisturbed or bulk sample. Test pits are fine for shallow foundations and pavement subgrade. For deeper layers we recommend a borehole.
