Mackay's geology presents real challenges for retaining wall design. The coastal floodplains are underlain by soft alluvial clays and high-plasticity soils that can shift with seasonal moisture changes. For any Mechanically Stabilized Earth (MSE) wall design in Mackay, the backfill selection and drainage layer become critical from day one. We have seen projects where inadequate soil characterisation led to bulging facings within two wet seasons. That is why we always pair the wall design with a site-specific ensayo SPT to confirm in-situ strength and compaction potential before specifying reinforcement spacing.
Mackay's reactive clays demand MSE wall designs that prioritise drainage and backfill quality over brute concrete mass.
Methodology and scope
The difference between a site near the Pioneer River and one on the Eton Range is night and day. River flat soils tend to be soft, saturated and prone to long-term creep, while the volcanic-derived clays west of Mackay show high shrink-swell behaviour. For an MSE wall to perform in both settings, the design must account for drainage, corrosion potential of the steel strips and the pullout resistance of the geogrid. We apply AS 4678-2002 for earth-retaining structures and complement the wall calculations with ensayo triaxial data to model the soil-reinforcement interaction. The outcome is a structure that handles lateral earth pressures without relying on rigid concrete alone.

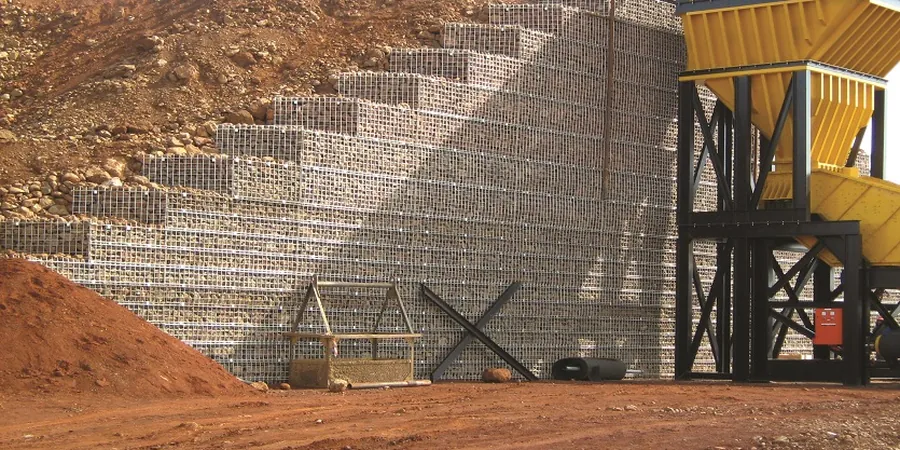

Technical reference image — Mackay
Local considerations
Mackay sits in a region that receives over 1600 mm of rain annually, with tropical cyclones capable of dropping 300 mm in a day. That water load can saturate the retained soil and turn a well-designed MSE wall into a failure risk if the drainage blanket or weep holes are undersized. The risk of hydrostatic pressure build-up behind the reinforced zone is real. We model worst-case saturation scenarios and include a redundant drainage layer to keep pore pressures low. Without that, the wall face can bulge or the entire reinforced block can slide forward.
Full structural design of MSE walls including geogrid selection, reinforcement length optimisation, facing connection details and internal/external stability checks per AS 4678.
02
Backfill Characterisation & Drainage Design
Laboratory testing of proposed backfill (gradation, compaction, triaxial shear) plus drainage layer specification to handle Mackay's intense rainfall events.
Applicable standards
AS 4678-2002 – Earth-retaining structures, AS 1726-2017 – Geotechnical site investigations, AS/NZS 1170.2:2011 – Wind actions (cyclonic regions), FHWA-NHI-10-024 – MSE wall design guidelines
Frequently asked questions
What is an MSE wall and how does it work?
A Mechanically Stabilized Earth (MSE) wall uses layers of geogrid or steel strips embedded in compacted granular fill to create a reinforced soil mass that resists lateral earth pressure. The facing elements are typically precast concrete panels or wrapped geotextile. MSE walls are flexible, cost-effective and tolerate differential settlement better than cantilever walls.
How much does MSE wall design cost in Mackay?
The design fee for an MSE wall in Mackay typically ranges between AU$1,900 and AU$8,080 depending on wall height, length, site access and the level of geotechnical investigation required. A taller wall on soft alluvium near the Pioneer River will sit at the upper end of that range.
What soil conditions in Mackay affect MSE wall performance?
The deep alluvial clays along the coast have low bearing capacity and high plasticity, which can cause long-term creep under the wall load. Reactive soils on the Eton Range side shrink and swell with moisture, risking differential movement of the facing panels. Adequate compaction of the reinforced fill and a free-draining granular layer are essential in both settings.
What standards apply to MSE wall design in Australia?
The primary standard is AS 4678-2002 for earth-retaining structures, supplemented by AS 1726 for geotechnical site investigation. For walls in cyclonic regions like Mackay, AS/NZS 1170.2 wind loads must also be considered, especially for freestanding wall facings. FHWA guidelines are often used for detailed reinforcement design.
