With over 120,000 residents and a subtropical climate averaging 1,600 mm of rain annually, Mackay presents distinct geotechnical challenges for deep foundations. The city sits on Quaternary alluvium and coastal sands overlying volcanic rock, which means pile foundation design here must account for variable soil stiffness and groundwater fluctuations. Our team integrates borehole data, SPT results, and laboratory consolidation tests to model capacity and settlement accurately. Before specifying pile type, we also run pavement evaluations when the project includes access roads or hardstands, ensuring the entire foundation system performs as intended under service loads.
In Mackay’s saturated alluvial soils, ignoring groundwater effects on pile shaft friction can lead to 20-30% overestimation of capacity.
Methodology and scope
The upper 5 to 10 metres in Mackay typically consist of soft to firm clays and loose sands, with the water table sitting 1.5 to 3 metres below ground level. Beneath that, denser sands and weathered rhyolite provide suitable bearing strata for end-bearing piles. Our pile foundation design approach includes:
Static load tests per AS 1289 to verify ultimate capacity
Dynamic pile monitoring using PDA for driven piles
Lateral load analysis where wind or seismic forces dominate
We also perform resistivity imaging to map soil stratification across large sites, reducing the number of boreholes needed without compromising data quality. Every design references AS 2159 and the Mackay Regional Council’s local drainage and flooding guidelines.

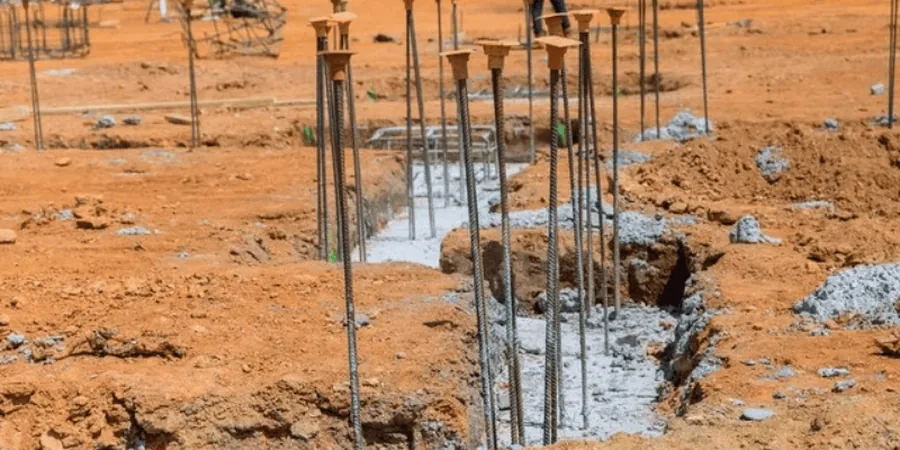

Technical reference image — Mackay
Local considerations
In Mackay, many times we see projects where the high water table is treated as a temporary dewatering problem rather than a permanent design parameter. If you underestimate pore pressure effects on pile shaft friction or neglect corrosion potential in the saline groundwater, you risk long-term settlement or structural degradation. Pile foundation design here must include a corrosion protection strategy — either concrete cover ≥ 75 mm, sacrificial steel thickness, or cathodic protection — to maintain service life beyond 50 years. Seasonal flooding also demands that pile caps be elevated above the 1-in-100-year flood level, a requirement often missed by teams unfamiliar with local council planning schemes.
Borehole drilling with SPT and undisturbed sampling to AS 1726, laboratory triaxial and consolidation testing, and preparation of a foundation design report with recommended pile type, length, and capacity. We also provide corrosion risk assessment for buried steel and concrete elements.
02
Pile Load Testing and Dynamic Analysis
Static compression and lateral load tests per AS 1289, PDA monitoring during driving, and CAPWAP analysis to confirm geotechnical capacity and structural integrity. Results are compared directly with our design assumptions to validate the pile foundation design before full production.
Applicable standards
AS 2159:2009 Pile design and installation, ACI 543R Guide to design, manufacture, and installation of concrete piles, AS/NZS 1170.0:2002 Structural design actions – General principles, AS 1289 Standard test methods for lateral load tests on piles
Frequently asked questions
What is the typical pile foundation design approach for Mackay's soft soils?
We start with a site investigation including boreholes to at least 5 m below the anticipated pile toe. SPT N-values, moisture content, and Atterberg limits define soil layering. For soft clays we design friction piles with enlarged diameters or consider CFA piles to minimise disturbance. In areas with shallow rock, end-bearing H-piles are more economical.
How does the high water table affect pile foundation design in Mackay?
High groundwater reduces effective stress and therefore shaft friction in clay layers. It also increases the risk of hydraulic heave during excavation for pile caps. We account for buoyant unit weights in capacity calculations and specify dewatering methods or underwater concrete if necessary. Corrosion potential is also evaluated when groundwater is saline.
What standards govern pile foundation design in Queensland?
The primary standard is AS 2159:2009 for pile design and installation, complemented by AS/NZS 1170.0 for load combinations. For seismic loading we refer to AS 1170.4 and the National Construction Code. Local council requirements for flood levels and setback distances also apply.
What is the typical cost range for a pile foundation design study in Mackay?
A comprehensive geotechnical investigation and pile design report for a residential or light commercial project typically ranges between AU$2,810 and AU$9,540, depending on site size, number of boreholes, laboratory tests, and pile load testing requirements. Contact us for a project-specific quote.
Can pile foundation design be done without load testing?
Yes, AS 2159 allows design based on static calculation methods using SPT or CPT correlations, but load testing is strongly recommended when soil conditions are variable or when pile capacity is close to the design limit. For critical structures or large projects, at least one static load test per site is standard practice to verify assumptions.
