Mackay's growth as a regional hub for sugar exports and coal shipping has pushed development into floodplain deposits and alluvial terraces along the Pioneer River. Early subdivisions in the 1970s revealed the challenge: soft estuarine clays overlain by stiff desiccated crusts, making conventional bearing capacity estimates unreliable. That's where the Ménard pressuremeter test (PMT) delivers a direct measure of soil stiffness and limit pressure, bypassing the empirical adjustments needed from standard penetration tests. Before designing piles for a new wharf extension or a multi-storey residential tower, combining a PMT with a consolidation test clarifies long-term settlement under sustained loads. The test results feed directly into settlement predictions and lateral load capacity calculations, giving engineers confidence in their foundation designs.
The PMT measures soil stiffness directly at depth, bypassing empirical corrections that often misrepresent soft alluvial clays in coastal Queensland.
Methodology and scope
The humid subtropical climate of Mackay, with summer rainfall exceeding 1,600 mm annually, saturates the upper soil profile and creates variable moisture conditions. The PMT, being a pressure-controlled borehole expansion test, remains largely unaffected by pore water fluctuations — unlike vane shear tests that require careful drainage assumptions. The probe is inserted into a pre-drilled hole, typically at depths of 3 to 15 meters, and expanded incrementally while recording volume change against applied pressure. Key parameters derived include the Ménard modulus (E_M), limit pressure (p_L), and creep pressure (p_f). These values are essential for designing foundations in the region's interbedded sands and clays. For projects involving cut slopes or retaining walls, the same PMT data supports a slope stability analysis by providing in-situ shear strength parameters without laboratory disturbance.

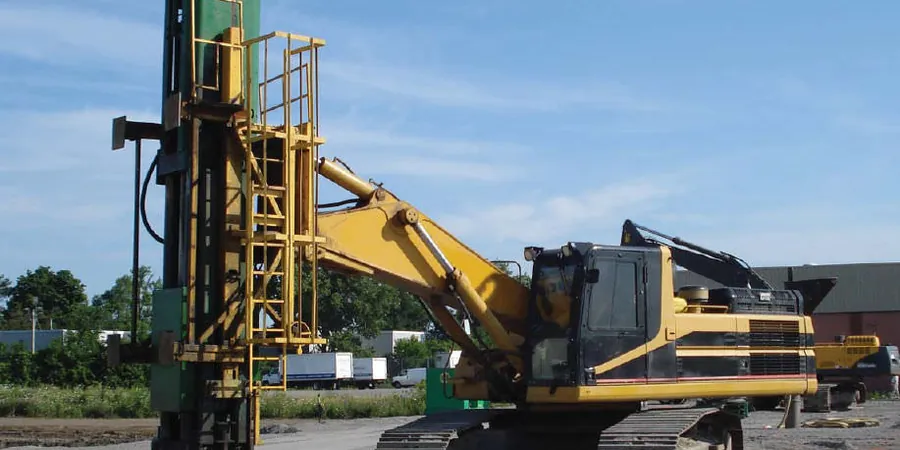

Technical reference image — Mackay
Local considerations
Mackay sits on the coastal floodplain at an average elevation of just 11 meters above sea level, with a population exceeding 120,000. The region's alluvial soils are prone to differential settlement under heavy loads, especially where sugar mill expansions or new coal-loading infrastructure demand deep foundations. Without a PMT, engineers often underestimate the stiffness of cemented sands or overestimate the strength of soft clays, leading to overly conservative pile designs — or worse, structural distress. The Ménard pressuremeter test (PMT) provides direct measurements that reduce these uncertainties, aligning with AS 1726 and AS 4678 requirements for site classification and earth retaining structures. Using the PMT early in the design phase avoids costly rework later.
For sites near the Pioneer River, we use a rotary wash borehole to advance the hole without disturbing the surrounding soil, then insert the Ménard probe. This method suits low-strength clays where casing is required to prevent collapse.
02
PMT in stiff desiccated crusts
In older terraces where a hard crust has formed over softer clay, we perform the test at multiple depths within the crust to capture the stiffness profile. Results are used to optimize shallow footing sizes or pile embedment lengths.
03
Post-construction verification PMT
After ground improvement works such as dynamic compaction or vibro-replacement, repeat PMT measurements confirm that target modulus and limit pressure values have been achieved across the treated area.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth retaining structures, AS 1289 Standard test method for pressuremeter testing in soils
Frequently asked questions
How deep can the Ménard pressuremeter test (PMT) reach in Mackay's soils?
Standard PMT boreholes in Mackay typically reach depths of 3 to 15 metres. In very soft clays where borehole collapse is a risk, we use casing or drilling mud to maintain stability. Deeper tests up to 25 metres are possible with specialised equipment, useful for deep pile foundations in the city's alluvial plains.
What is the typical cost range for a PMT in Mackay?
The cost for a single Ménard pressuremeter test in Mackay generally falls between AU$1,740 and AU$2,060, depending on depth, access conditions, and the number of tests per borehole. Volume discounts apply for multiple test points across a single site.
How does the PMT compare to the standard penetration test (SPT) for foundation design?
The PMT provides a direct measurement of soil stiffness (E_M) and limit pressure (p_L), while the SPT only gives a blow count (N-value) that requires empirical correlations to estimate modulus. For Mackay's interbedded alluvial soils, the PMT reduces uncertainty in settlement predictions by up to 40%, making it the preferred method for sensitive structures like pump stations or conveyor supports.
